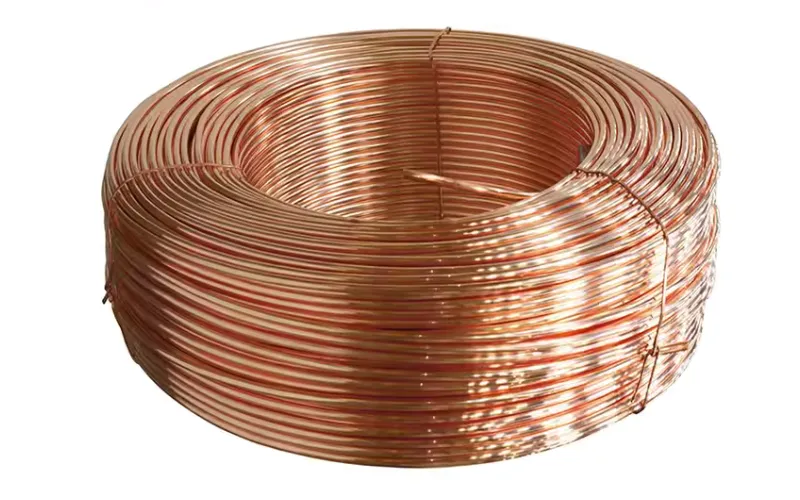

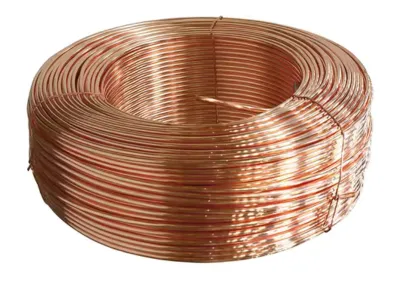

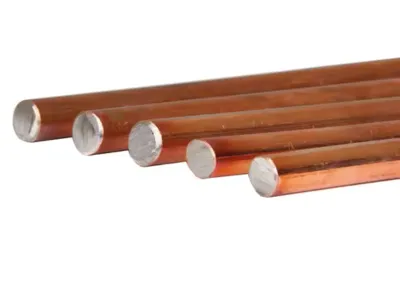

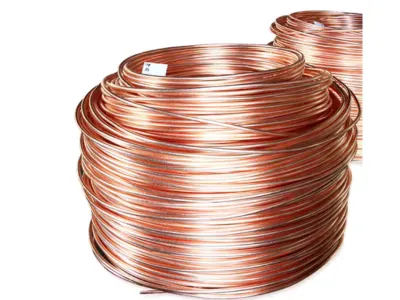

CU-BOND Round ConductorsGrounding

Product Description

Josef Contracting’s CU-BOND round conductors feature 195B cold-drawn steel coated with 0.254mm copper, offering fastness, anti-corrosion, and flexibility for Al-Khabr’s harsh environments.

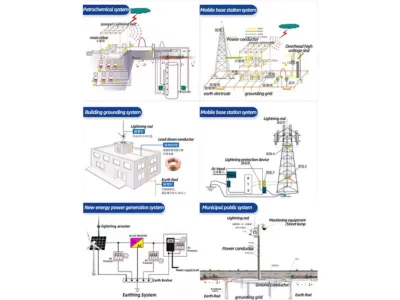

These conductors, with copper that won’t crack or peel when bent, are widely used to connect earth mats and rods in power plants and substations.

With a low MOQ of 100 units and 7-14 day global delivery, we provide cost-effective, certified solutions tailored for Al-Khabr contractors and distributors.

Product Parameter

Material: Copper Clad Steel; Copper Thickness: ≥0.254mm; Tensile Strength: 560-1040MPa

Life: ≥50 years; Diameter: 8mm to 16mm (customizable); Straightness Error: ±0.08mm to ±0.10mm

Standards: ISO 9001:2008; Packing: 6m linear or 100-500m rolls
